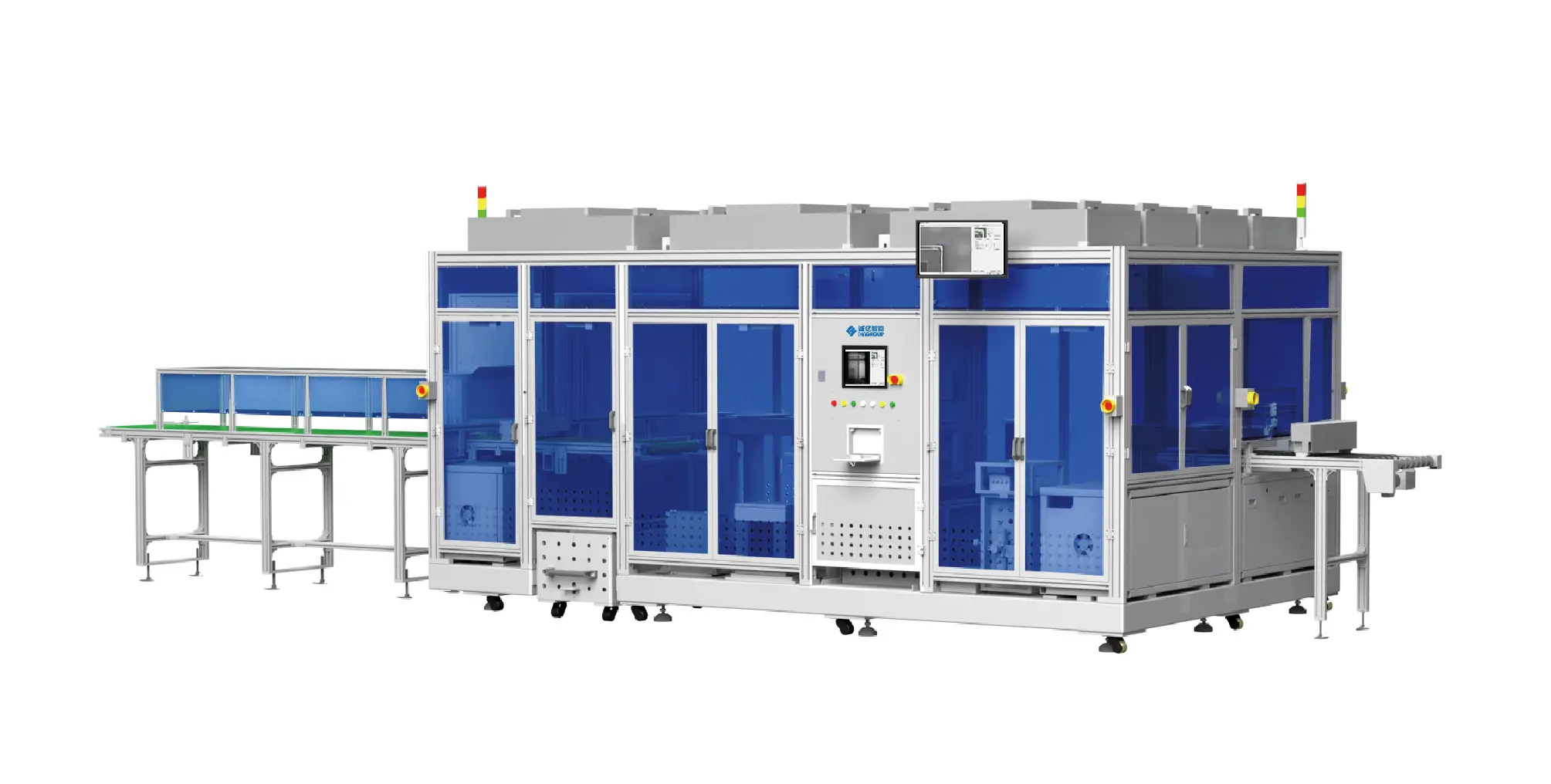

The mid-size LCM assembly equipment is mainly designed for assembling 5″~17.3″ tablet, notebook, and in-vehicle display LCMs. It enables unmanned operation, improving assembly yield and production capacity. The equipment features automatic CELL film peeling, BLU film peeling, BLU&CELL assembly, finished product GAP inspection, finished product pressure retention, and automatic unloading.
Function | Cell & BLU Automatic Assembly | Cell & BLU In-Vehicle Four-Side Adhesive Auto Assembly |
Size | 5′-17.3″ | 5″-17.3″/10″-60″ |
Key Accuracy | ±0.05mm | 5″-17″ ≤ ±0.1mm, 17″-32″ ≤ ±0.15mm, 32″-60″ ≤ ±0.2mm Dispensing/Screw Valve Precision: 5%, Dispensing Uniformity: Width ±0.1mm, Height ±0.08mm. |
Tact time | ≤7S | 5″-17″ TT ≤ 10s 10″-32″ TT ≤ 15s 10″-50″ TT ≤ 40s 10″-60″ TT ≤ 60s |
Equipment utilization | ≥98% | |
Optional Features | MES system, finished product GAP inspection, finished product pressure retention | |
Solution Line | Applicable Size | Precision | Tact Time | Yield Rate | Product Application |
CYB610 Series | 0.5″-7″ | ±0.05mm | 3.5S | ≥99% | Wearable and Automotive Devices |
CYB780 Series | 5″-17.3″ | ±0.05mm | 7S | ≥99% | Tablets & Vehicle Displays |
CYB900 Series | 18.5″-37″ | ±0.1mm | 9S | ≥99% | TV & Commercial Displays |
| 5″-17″ | ±0.1mm | 10S | ≥99% | In-Vehicle Four-Side Adhesive Assembly |
CYAS800 Series | 10″-32″ | ±0.15mm | 15S | ≥99% | In-Vehicle Four-Side Adhesive Assembly |
| 10″-60″ | ±0.2mm | 60S | ≥99% | In-Vehicle Four-Side Adhesive Assembly |
Inspect the actual operation of the factory, in-depth understanding and verification of product use effect.
Through field visits, in-depth understanding of the factory operation process and product production effect.
We providing comprehensive sample testing services for our clients, ensuring that your products meet industry standards. Whether it’s raw materials or finished products, we have the professional equipment and team to help you ensure the quality of every sample.
