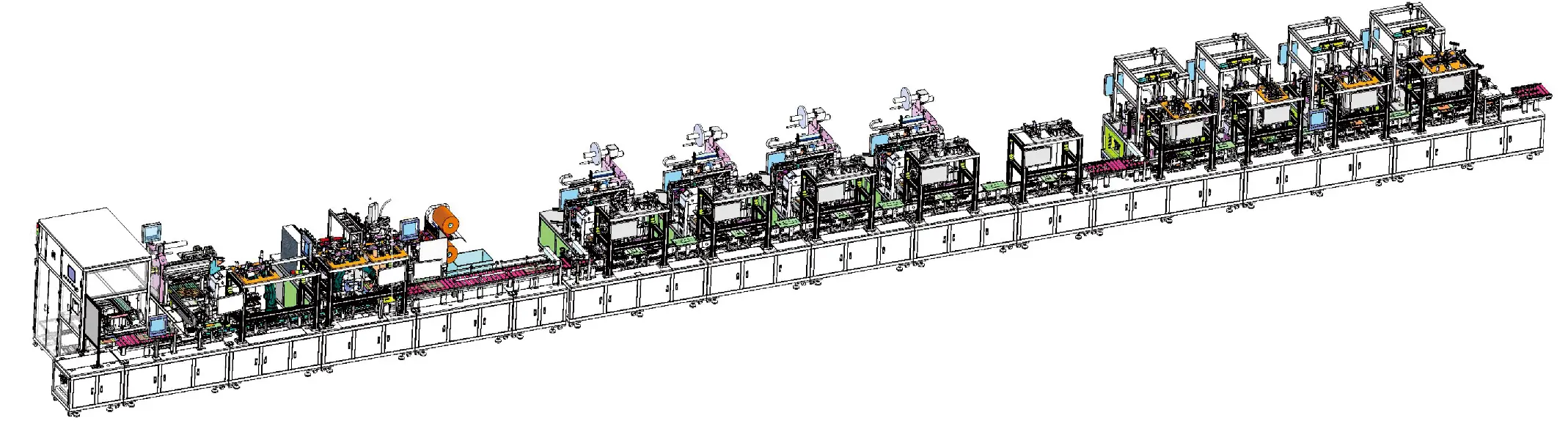

This mid-size backlight module assembly line equipment is specifically designed for 7″ to 17.3″ tablet and notebook display backlight modules, enabling unmanned operations that significantly enhance the yield and productivity of backlight products. The entire line incorporates an integrated cleanroom environment to maintain dust-free conditions, while the combination of vision systems and robotic arms boosts product versatility and output, ensuring precise assembly. The process includes automatic backplate loading, reflector assembly, light guide plate assembly, lamination, and application of light-blocking tape, catering to diverse product configurations as per client requirements.
Function | Backplate + Reflector + Light Guide Plate + Film Stacking + Light-blocking Adhesive |
Size | 7″ – 17.3″ |
Key Accuracy | Reflector Attachment: ±0.1mm Light Guide Plate Positioning: ±0.1mm Film Stacking: ±0.1mm Light-blocking Adhesive Application: ±0.1mm |
Tact time | Total Cycle Time < 7s |
Equipment utilization | ≥98% |
Optional Features | 7″ – 17.3″ Tablet & Notebook Display Module Assembly Line Solution |
Series | Production process↓ | Solution1 | Production process↓ | Solution2 |
Size | 7″~17.3″ | 18.5″~27″ | ||

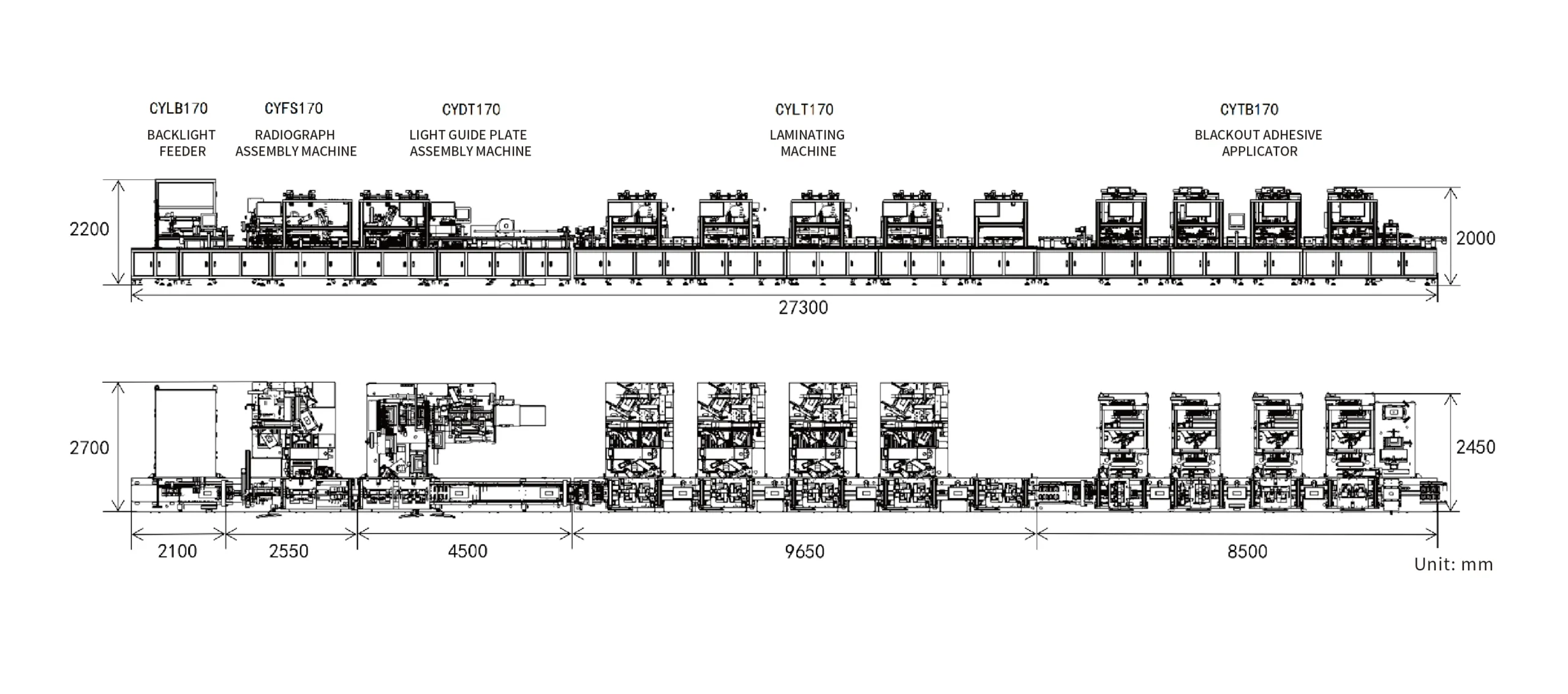

Module Assembly | LD | CYLB170 | Double-sided Tape Application 4-Station | CYTB830 |
| Reflection | CYFS170 | Conductive Fabric Tape 4-Station | CYDTB830 |
| Light Guide Plate | CYDT170 | Rubber Assembly | CYRTB830 |
| Lamination | CYLT170 | Reflector + Light Guide Plate | CYSD830 |
| Light Shielding Adhesive | CYTB170 | Three-in-One Film Material Assembly | CYLT830 |
