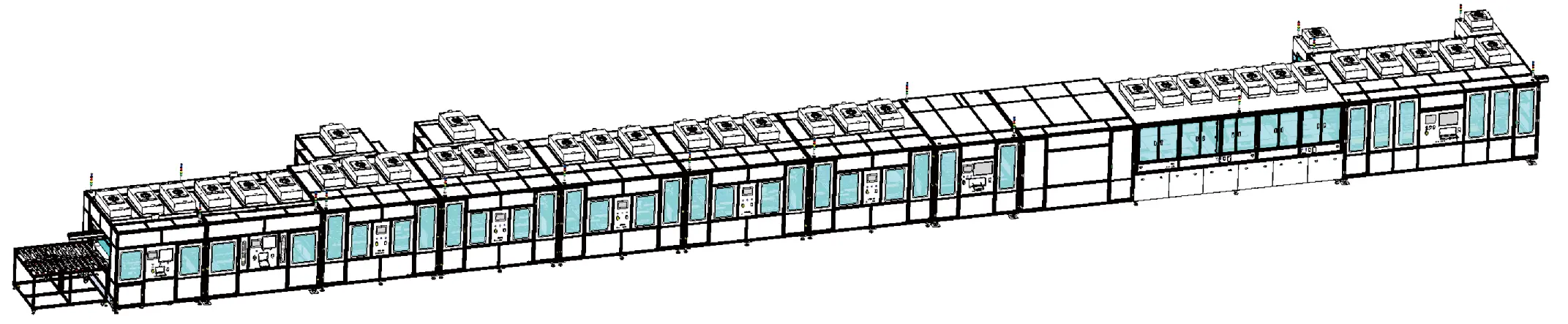

The 6000 series is specifically tailored for high-speed automatic bonding solutions in the 20″ to 60″ commercial display and TV segment, as well as automotive long-bar displays. It supports multi-sided, multi-COF bonding with full automation for loading and unloading throughout the line. Automated handover between robotic arms at each workstation enables unmanned operation.
Process Flow | EC+COF+A01+Buffer+DISP+FOB |
Size | 20″~60″ |
Key Accuracy | ACF Attachment: X/+0.15mm, Y/+0.1mm COF Punching: X/Y±0.05mm COF Bonding: X/Y±5μm PCB Bonding: X/±25μm, Y/±30μm Dispensing Accuracy: X/Y±0.1mm |
Tact time | S Side 6 COFs + 1 PCB: TT ≤ 12s S Side 6 COFs + G Side 3 COFs + 2 PCBs: TT ≤ 14s |
Equipment Efficiency (OEE) | ≥98% |
Optional Features | Equipment can interface with CIM functionality; Single-side bonding of 1-2 PCBs; FOB Bonding AOI Misalignment Detection Feature; Dispensing machine equipped with standard domestic needle valve, optional upgrade to specified brand spray valve |

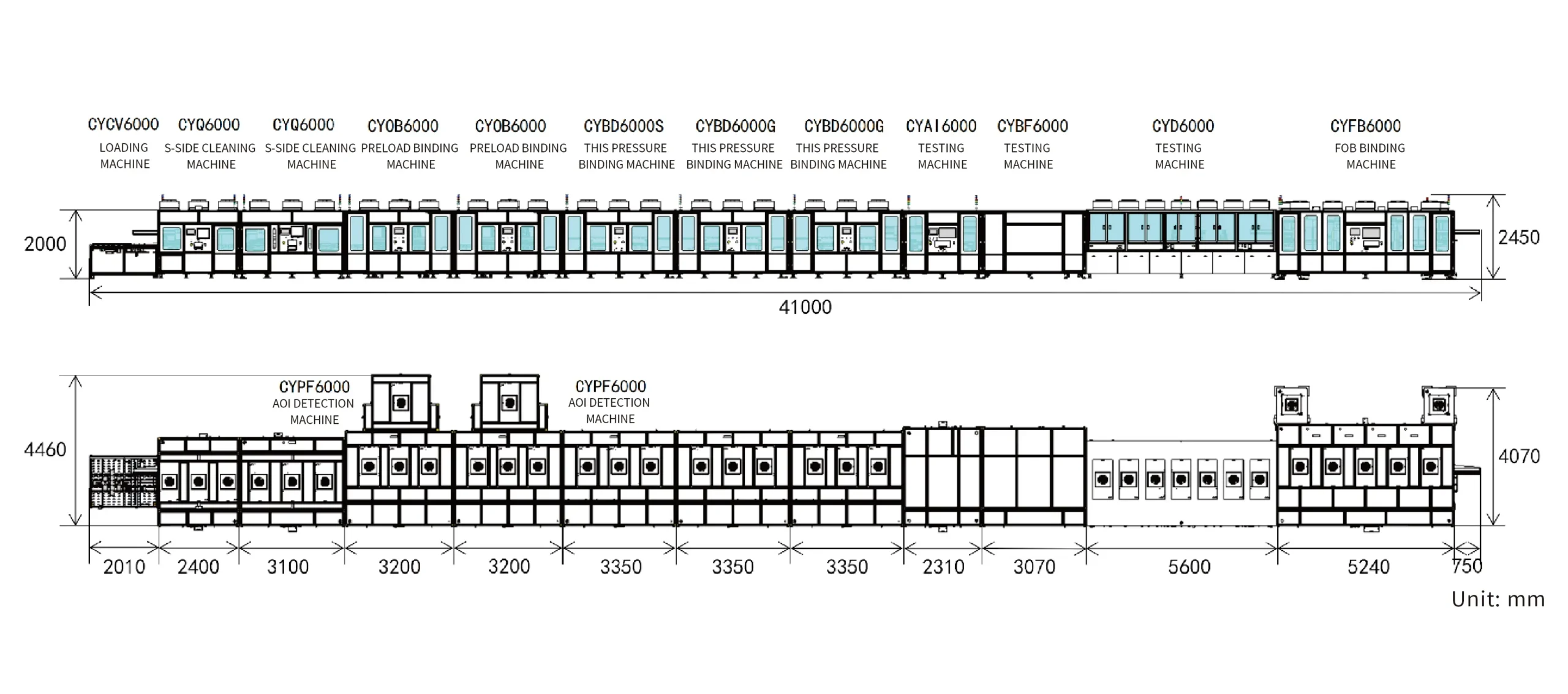

Solution↓ | Solution CY6000 series | |
Size | 20″~60′ | |
Bonding | LD | / |
| EC | CYQ6000 |
| COF Pre-bonding | CYOB6000 |
| COF Main Bonding | CYBD6000 |
| Buffer | CYBF6000 |
| FOB | CYFB6000 |
| AOI | CYAI6000 |
DISP | CYD6000 | |
Inspect the actual operation of the factory, in-depth understanding and verification of product use effect.
Through field visits, in-depth understanding of the factory operation process and product production effect.
We providing comprehensive sample testing services for our clients, ensuring that your products meet industry standards. Whether it’s raw materials or finished products, we have the professional equipment and team to help you ensure the quality of every sample.
