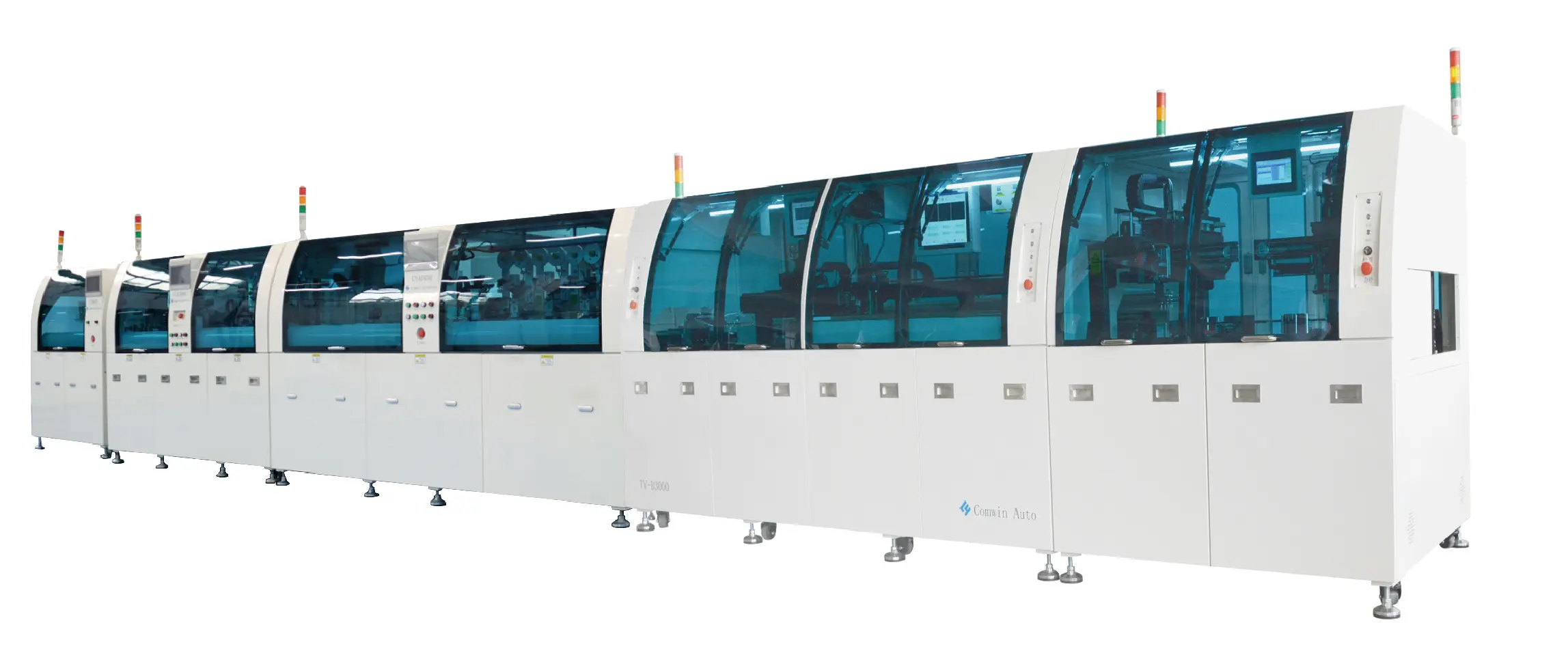

The 650B series is specifically designed for full-line automated module manufacturing processes for LCDs ranging from 1.44″ to 10.1″. It includes a complete set of equipment that supports automatic loading of LCD products, ITO terminal cleaning, COG bonding, FOG bonding（FPC loading）, particle AOI, glue dispensing and drying, along with TP lamination and backlight assembly.
Rationalized mechanical design with a simple structure and comprehensive functions, tailored for mass production of smartphones and tablets, featuring high automation enabling unmanned operations.
Excellent compatibility covering a wide range from 1.44″ to 10.1″, with customizable versions to accommodate even smaller products from 0.5″ to 10.1″.
Scalability allows for black and white screen external MARK alignment. can customize the special version of the T-FOG process corresponding to On-Cell
Modular design enables the configuration of varying numbers of COG/FOG units to support multi-chip and multi-FPC production processes, with CCD calibration ensuring bonding precision across the entire machine.
| Process Flow | LD+EC+COG+FOG+AOI+Dispensing+Lamination+Backlight Assembly |
| Size | 1.44″~10.1″ |
| Key Accuracy |
COG: X/Y ±5 micrometers FOG: X/Y ±15 micrometers Dispensing: X/Y ±0.1 millimeters Lamination: X/Y ±0.1 millimeters Backlight Assembly: X/Y ±0.05 millimeters |
| Tact time | A single piece on one side, total time (TT) ≤4.5 seconds. |
| Equipment Utilization | ≥98% |
| Optional Features |
The cleaning machine can optionally be equipped with Plasma from a specified brand. FPC includes a fully automatic loading machine. The dispenser comes standard with a needle valve, with an option to select a spray valve from a specified brand. The equipment can be integrated with CIM functionality. |

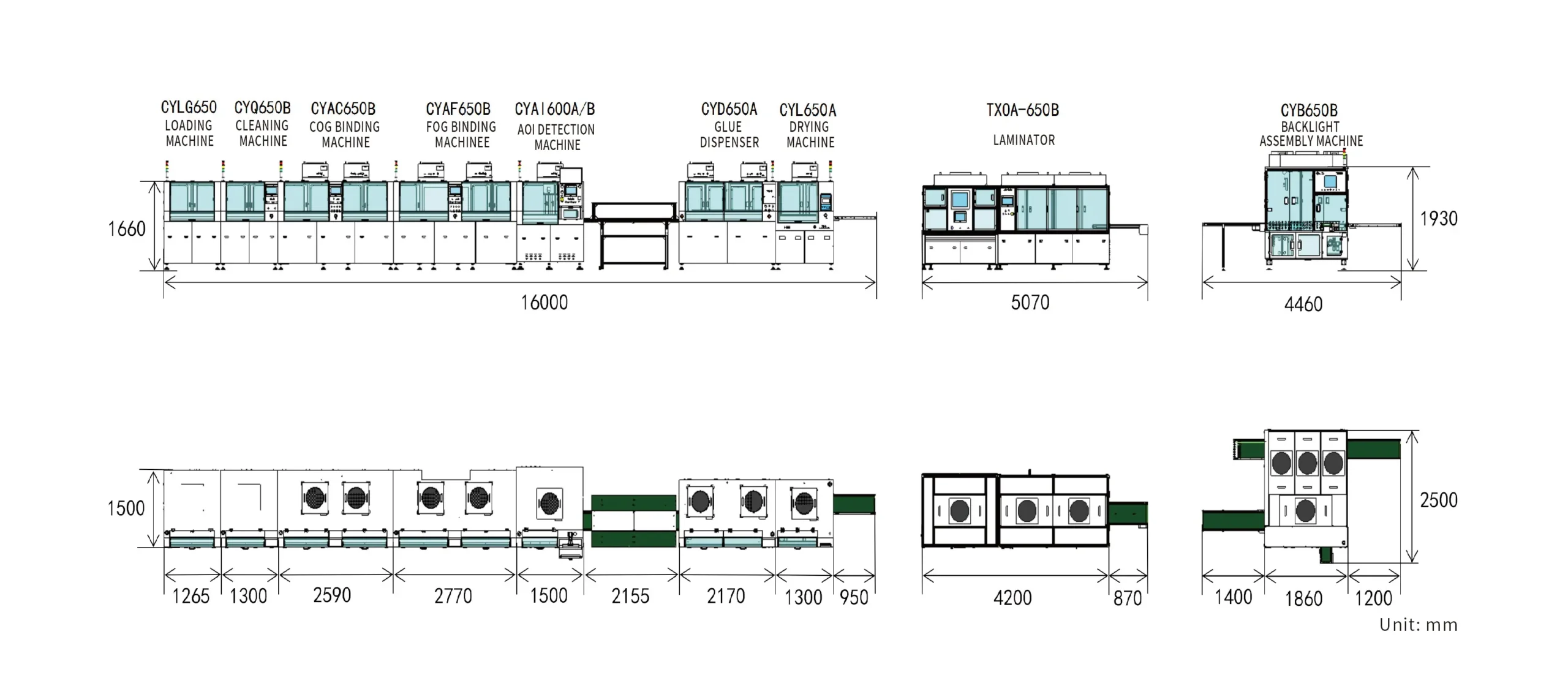

| Solution↓ | SolutionCY650B series | |
| Size | 1.44″~10.1″ | |
| Bonding | LD | CYLG650 |
| EC | CYQ650B | |
| COG | CYAC650B | |
| FOG | CYAF650B | |
| AOI | CYAI650A/B | |
| DISP | CYD650A | |
| Drying | CYL650A | |
| Lamination | TXOA-650B | |
| Backlight Assembly | CYB650B | |
